The General Part 3: How To Evaluate A Bid and Award a Contract

One of the skills that a general contractor needs to have is to properly evaluate a bid. Besides getting a fair price, there are many other considerations that make the difference between a great job and a not-so-great job, and its helpful to have some knowledge about the bid and award process to make a good choice. Fortunately, I have extensive experience in the bid and award process from my day job as a Government contractor. And, because Government contracts typically involve tens of millions of dollars and up, the stakes are understandably much higher. Therefore the methods used to bid and make an award decision under these circumstances are pretty involved and detailed. Having said that, these methods for solicitation, evaluation, and award of large contracts can be suitably scaled down when you’re talking about a few thousand dollars. So, here are some pithy axioms of the bid and award process that I feel are distilled down to the essence so that you can make a good decision. It may be “only” a few thousand dollars, but hey, that’s a lot of money when it’s mine!

All the bids are in. Time to get to work!

All the bids are in. Time to get to work!

First: Assumptions. We start the process with the facts that (a) you’re ready and committed to get the job done and (b) you have the necessary funding to start now. It’s just not fair to take people’s time and have them out for a “free” estimate when you’re not ready to commit.

Second: Become knowledgeable about what you really want and have an idea of work that is going to involved. You don’t have to be an expert, but the better prepared you are explain what you want to the bidders, the better bids you’re going to get. (Government equivalent: Request For Proposal (RFP) or Request For Information (RFI)). For my painting bid, I’ve done some painting before, so I knew that you have to mask and prime before you paint, and that different substrates (metal, wood, previously painted) would need a different primer. I also went around the house to make specific note of what I wanted painted and what color scheme I wanted.

Third: Choose your bidders and schedule appointments. You want to first figure out who is most likely going to provide the best product and service. Nowadays, the Internet has an amazing amount of resources for you to pre-qualify your bidders. Angie’s List, Yelp, and Home Advisor are some examples of these services. Personally, I use Angie’s list because I can read through the reviews and do a little bit of analysis on how the individual contractors perform on an ongoing basis. The things that I look at are the number of ratings and the distribution of the ratings. If there is one rating that is low, I don’t necessarily take a lot of stock in it because there are people who are perpetually dissatisfied, no matter what. But, if there is a trend of dissatisfied customers, then I typically steer clear. (Government equivalent: Market research). For the painting job, I found three contractors with good ratings on Angie’s list, and I had recommendations from a couple of other subcontractors for a total of five.

A search for painters on Angie's list. I look at the rating and also the number of ratings that they have because more ratings means that you're getting a representative sample of their work. I also go to the company websites to check them out as well. They usually have pictures of their work.

A search for painters on Angie’s list. I look at the rating and also the number of ratings that they have because more ratings means that you’re getting a representative sample of their work. I also go to the company websites to check them out as well. They usually have pictures of their work.

Angie's list gives a really good breakdown of the ratings. I especially like the statistics which show, graphically, the level of customer satisfaction. I never consider bad ratings if they are statistically insignificant (as shown in this example) because you can't please everybody.

Angie’s list gives a really good breakdown of the ratings. I especially like the statistics which show, graphically, the level of customer satisfaction. I never consider bad ratings if they are statistically insignificant (as shown in this example) because you can’t please everybody.

Fourth: Always get multiple bids and be open to options. This has several advantages. (1) You get a chance to see what the job will cost and you’ll get a range for comparison (Government equivalent: price realism). (2) You get a chance to meet with the bidders and, if you apply your knowledge of what you want done (first step), you can engage the bidders and learn more about the options. While you may have something definite in mind, these folks are professionals who have been doing this and know the advantages and disadvantages of various approaches. If you keep your ears and mind open, you will learn a lot. You will also get more information to help you make a better informed award decision.

Fifth: Get the bids and do the evaluation. When doing the evaluation, you need some sort of strategy and ways of comparing apples to apples. (Government equivalent: Evaluation strategy/plan).  Be aware that price is not always the determining factor. Yes. price does have a lot to do with it, but you have to take into account the quality of the product and service, and have some confidence that the contractor is going to perform as expected. So besides price, here’s what I consider: (1) Timeliness. Was the bidder on time and did the bidder respect my time? If not, then maybe the bidder has time management issues and you can expect delays in your project. (2) Did the bidder listen to me? Did the bid come back with what we talked about, or was I being upsold into something? If the bidder did not listen carefully, then the job may not be completed to your expectations. (3) Did the bidder actively engage with me and provide helpful suggestions and recommendations, or was the bidder just taking notes and going to do what I said I wanted, even if what I wanted was not optimum? I certainly do not want a rubber stamp on my ideas and I want my contractors to provide value with their experience. (4) Was the bid in writing and was it accurate and complete? If the bid is meticulous and well written, that is a good sign of attention to detail and the quality of the work and the customer service you can expect. (5) Are you comparing apples to apples? Did the bids address different things, and how do you normalize them? You don’t want to pay a premium for something you don’t think is important, but you don’t want to waste money on a job that will fall short of your needs and expectations. For my painting example, I had to subtract the cost the bid of installing a garage side door from another competing bid. When I decided to replace the door myself, I had to add back in the cost of the door replacement materials to the both the first and second bidders.

This can get complicated, so it can be helpful to develop a table that lists the price options, features and benefits, and drawbacks and risks so that you can see the entire picture. I prefer a spreadsheet, but realistically a notepad and a pencil will do just fine (although I like the way the spreadsheet adds up things without mistakes).



Worksheet for comparing bids. Pricing can be tricky so the best way is to compare features and benefits against drawbacks to get the complete picture.

Worksheet for comparing bids. Pricing can be tricky so the best way is to compare features and benefits against drawbacks to get the complete picture.

Bottom line is that you need to understand what you’re getting for your money and have a way of comparing the options to what’s important to you. Once again, price may NOT be the most important factor!

Sixth: Award the contract. Once you make a decision, immediately contact each of the bidders to let them know their situation. I personally like e-mail, but any medium is good, so long as it’s timely. You need to respect the time of the bidders, especially those who did not win, because they have to keep moving on to generate other business, and they spent their valuable time with you, so they deserve to know. The winner, of course, will be happy, but now you both have to start working together to get the job scheduled and completed. No time like the present!

The General Part Two: Roofing.

Now that the stucco was complete, the roofers were next, but they were coming first thing the next week. The stucco folks had to remove the scaffolding, and we had it planned for a Saturday, but the scaffold guys were behind on another project and they had to delay. They promised they would come out on Monday to finish. Sure enough, when Monday rolled around, I had roofing guys having to work around the scaffolding guys to strip the roof. As the general contractor, I had to get this deconflicted in a hurry, so told the scaffolding folks to push the scaffolding back so the waste truck could park and then everybody was happy. The scaffolding guys came by the next day, removed the scaffolding from the front, clearing the way for the roof loader to load the shingles, and then they went about taking everything else down while the roofers worked on top. My experience in managing construction and maintenance in a shipyard on a submarine paid off in this case. (Actually, it was quite simple in comparison.)

Stripping the roof. These guys have this special truck which allows them to throw the junk directly from the top of the roof, making it much easier to clean up later. That process did not, however, work for the back of the house and the workers had to lug around a bunch of old roofing material around the yet-to-be-taken-down scaffolding by hand.

Stripping the roof. These guys have this special truck which allows them to throw the junk directly from the top of the roof, making it much easier to clean up later. That process did not, however, work for the back of the house and the workers had to lug around a bunch of old roofing material around the yet-to-be-taken-down scaffolding by hand.

After the old roofing material is torn off, the next thing that the roofers do is to waterproof with the roofing underlayment. Although not usually a problem here in Southern California, the reason that this is carefully coordinated is because if the home is left without at least a minimum amount of waterproofing after the roof is stripped, than any amount of precipitation will likely cause significant water damage. So the contractor usually plans on stripping the roof and waterproofing the same day in order to minimize his liability in case of rain.

After the old roofing material is torn off, the next thing that the roofers do is to waterproof with the roofing underlayment. Although not usually a problem here in Southern California, the reason that this is carefully coordinated is because if the home is left without at least a minimum amount of waterproofing after the roof is stripped, than any amount of precipitation will likely cause significant water damage. So the contractor usually plans on stripping the roof and waterproofing the same day in order to minimize his liability in case of rain.

Loading the roof. The shingles come in packages of 33 square feet each (1/3 of a

Loading the roof. The shingles come in packages of 33 square feet each (1/3 of a “square”, which in the roofing business translates to 100 sq. ft.). This portable conveyor belt is indispensable in getting these heavy hogs on top of the roof.

Roofing was proceeding apace, and the roofers had to replace some of the fascia boards. I was looking around and then thought about the back of the roof, which had no fascia board (none of the houses in the neighborhood to — a bunch of cheapskate builders!). The roofing company owner came around to look at the job and then explained to me that the wholesaler had run short of the shingles we were using, and they were going to have to stop the work until the following week. We then started discussing the missing fascia, and we agreed it was a good idea to put new fascia on. So, I was back in the carpentry business, with a deadline of Monday to get some new fascia boards up. Fortunately, I enlisted the help of my work crew (my generous co-workers), and we had it up in good fashion. I also took the opportunity to rip off the old patio cover roof and put up a proper deck with 5/8″ T1-11 siding facing upside down to make a nice pattern on the “ceiling”. I had to do this job anyway, but I figured it may as well be now so that the painter can come in, finish the exterior trim/fascia/vents, and then my roofing guy can come back and put in a proper low-slope roof and gutters.

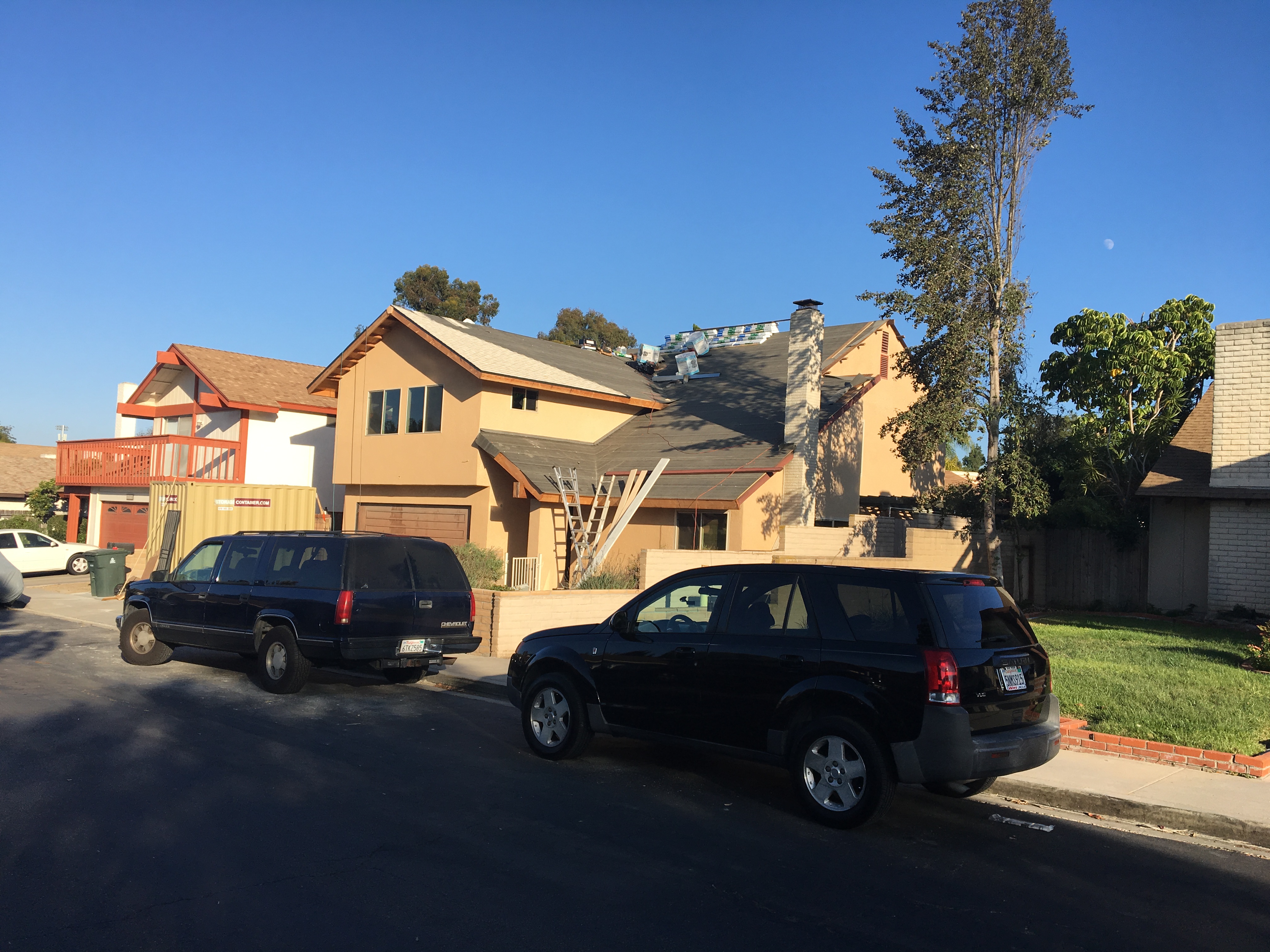

The first shingles are up!

The first shingles are up!

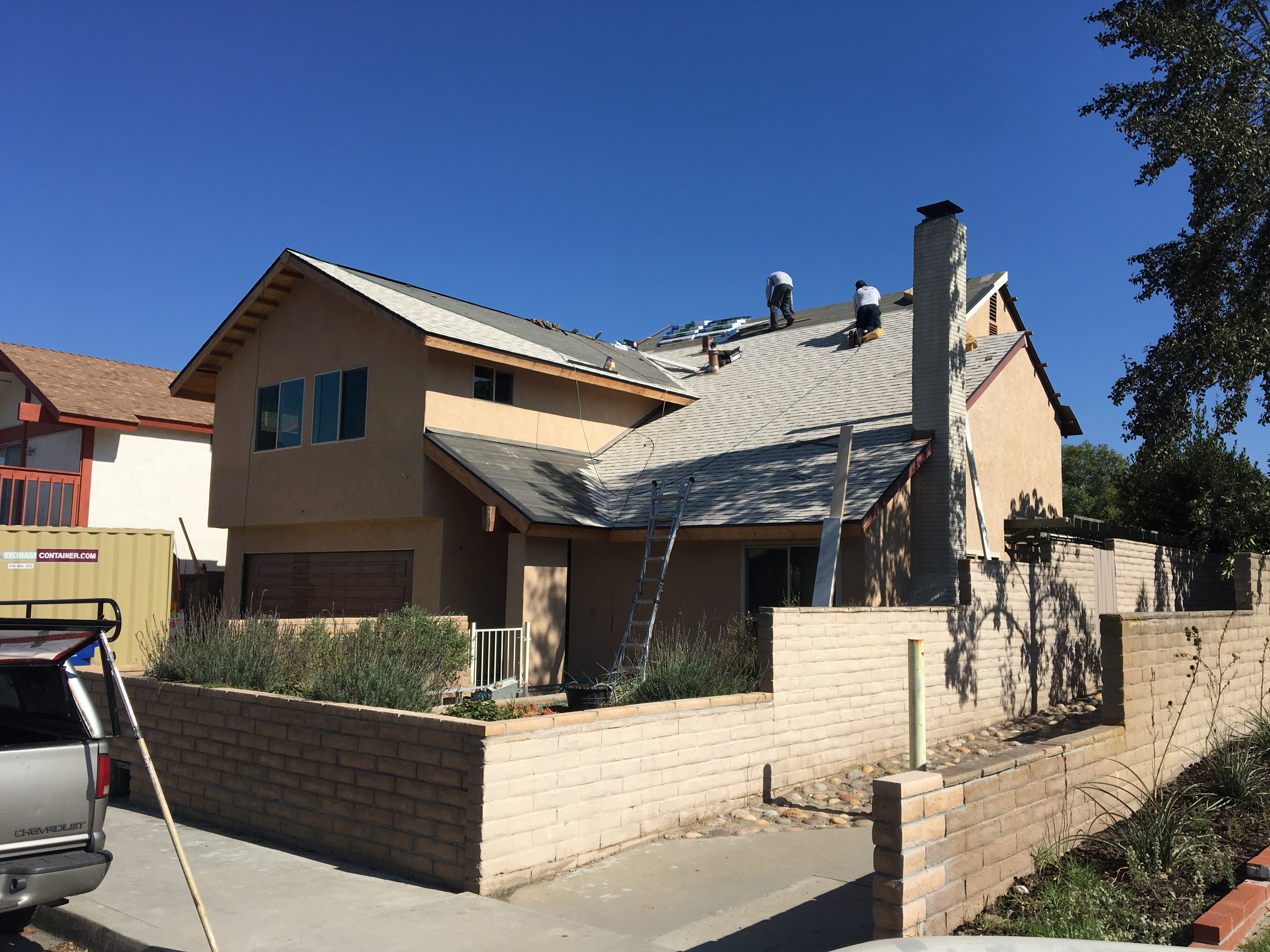

Shingles are going up. The color of the roof was much lighter than I expected, but the color matched very well with the new stucco color. Having said that, we're going to have to reconsider the color scheme for the trim painting.

Shingles are going up. The color of the roof was much lighter than I expected, but the color matched very well with the new stucco color. Having said that, we’re going to have to reconsider the color scheme for the trim painting. This is where work essentially stopped because the workers ran out of shingles.

My own roofing project. I had to rip off the whole sheathing and roof assembly because it was all rotten.

My own roofing project. I had to rip off the whole sheathing and roof assembly because it was all rotten.

The detritus of my own roofing project. I'll get rid of it eventually....

The detritus of my own roofing project. I’ll get rid of it eventually….

The boss has a look. See how hard I'm working?

The boss has a look. See how hard I’m working?

My roofing contractor recommended that I use T1-11 siding for my patio roof sheathing. The idea is that you put it on upside down, and it instantly makes a nice overhead pattern for a minimal extra cost. Looks WAY better than CDX plywood! Truly a great recommendation.

My roofing contractor recommended that I use T1-11 siding for my patio roof sheathing. The idea is that you put it on upside down, and it instantly makes a nice overhead pattern for a minimal extra cost. Looks WAY better than CDX plywood! Truly a great recommendation.

The roofers came back but again they had a supplier delay. This time it was the ridge caps. So, a 4 day job ended up taking 2 weeks. Quite honestly, I’m not the least bit bothered by that, especially since the delays gave me some time to respond to emergent work (back fascia boards) and replace the roof on my patio cover, which I knew I need to do. All’s well that ends well!

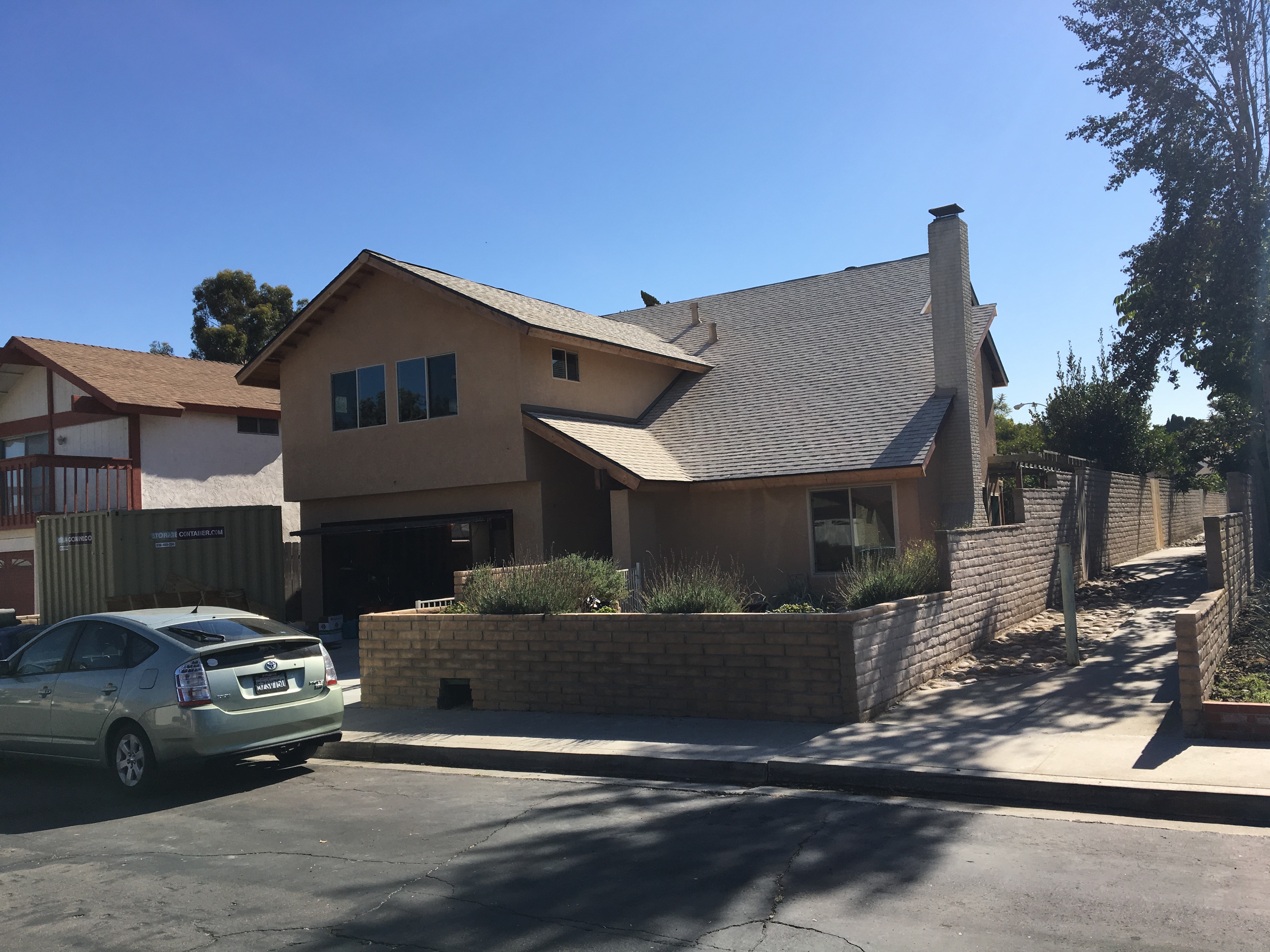

House with new roof -- well, almost. The supplier did not order the ridge caps so we had to wait another week to finish the job. This stuff happens all the time, so you need to know how to accommodate if you're the general contractor.

House with new roof — well, almost. The supplier did not order the ridge caps so we had to wait another week to finish the job. This stuff happens all the time, so you need to know how to accommodate if you’re the general contractor.

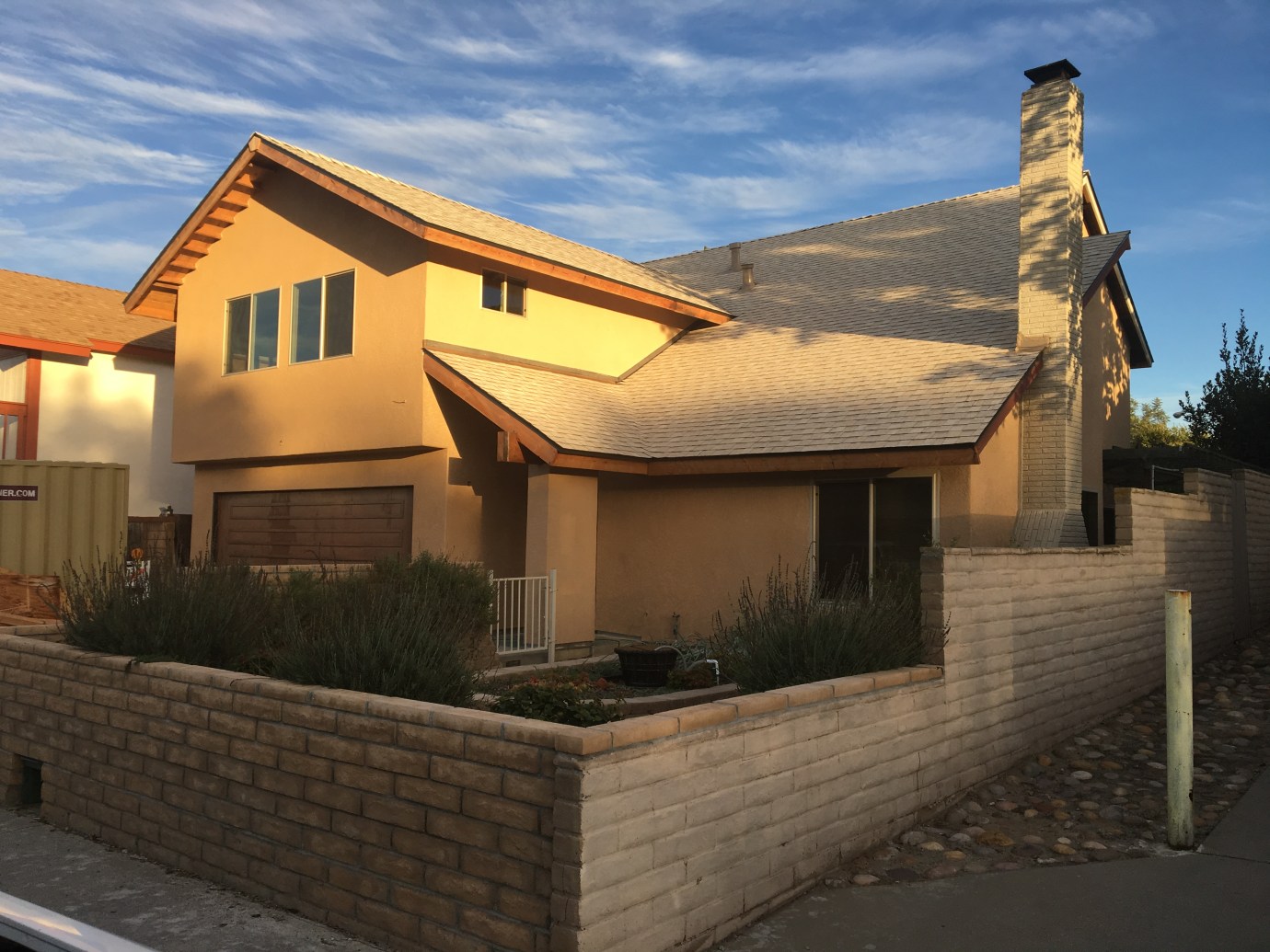

New roof with ridge caps. Really looks nice and we're getting a lot of compliments.

New roof with ridge caps. Really looks nice and we’re getting a lot of compliments.

The back of the house looks nice. This shows the improved roof vents, as well as the new fascia on the main roof and my new patio roof structure. The patio roof will be covered with a special

The back of the house looks nice. This shows the improved roof vents, as well as the new fascia on the main roof and my new patio roof structure. The patio roof will be covered with a special “low slope” roofing system after the trim and fascia boards are painted.

The next thing I have to do is to schedule the painters, get the roofers back for the patio roof and gutters, and get the HVAC replacement done. I’d like to get it done in the month of December, and I think that so long as the painters finish on time, I should be good from a schedule standpoint. We’ll see….

The General: Getting Other Trades Involved and How To Be A General Contractor Part One: Stucco.

With the project sufficiently mature, the time has come to involve other trades for work that I was not going to do by myself. I had to get a new roof put on, get the stucco put up, paint the exterior trim, and get a new HVAC system installed. I had planned all along to contract these jobs out because there really are limits to what even a pro can do by themselves (and I’m just a lowly, but enthusiastic, DIY’er). Finally, I could relax a bit and have someone else do the hard work, right? Well, not so fast….

It turns out that when you start to bring other trades in, you have to work as your own general contractor. That means coordinating schedules, materials, inspections and the like. Fortunately for me, I have a lot of experience in coordinating projects, so this one was really not so tough from a management perspective. However, I had to hustle to make sure that I did my part of the job and get truly ready for the next steps. The one thing that you have to understand are the dependencies that the jobs have on one another.

We start with the stucco. I had to coordinate the stucco and the roofing because, on my home, there was some interrelated work. I had to contract with a roofing company and get on their schedule, and they had to come out and do some preliminary roofing work before the stucco contractor could start. The stucco contractor then had to agree that he could finish the work before the roofing folks came in. But it turns out that some other trades were involved, and because I was covering those, I had to get back to work! For example, I had to finish rough electrical work around the living room and porch because they would be inaccessible after the stucco was up. So I had to DO the work, then schedule an inspection to get it signed off, then finish installing the plywood substrate and all of the other electrical penetrations. I also had to install bases for the new exhaust vents (dryer and ventilation fans) before the lath was put on. Even so, I forgot the doorbell and the intercom penetrations. I’ll just have to compensate later.

Getting ready to cover this area with plywood. I had to tear it all apart to get the porch roof beam installed, and as long as it was uncovered, I took the opportunity to fix up the wiring and add new coaxial and ethernet cabling.

Getting ready to cover this area with plywood. I had to tear it all apart to get the porch roof beam installed, and as long as it was uncovered, I took the opportunity to fix up the wiring and add new coaxial and ethernet cabling. I also had to get this inspected and all buttoned up before the stucco lath folks showed up. I had to hustle!

Insulation installed prior to lathing. This is R-19 underneath where the master bedroom floor cantilevers out by about 12 inches.

Insulation installed prior to lathing. This is R-19 underneath where the master bedroom floor cantilevers out by about 12 inches.

Nice lath job around the front door.

I also had to install all of the electrical fixtures (see the little yellow wire) and get a new front security door before the lath started. That’s because there was not enough clearance to remove and replace the old door without damaging the stucco. More unexpected work!

So, I finally got to the point where the lathing could take place, but I had one problem: I needed to remove the old electrical panel, and in order to do that I had to get the electrical service transferred. I worked with my stucco guy and we worked out a plan where I would get the electrical service transferred first thing on a Friday, then rip out the old box and have the lather come in and finish the area around the old electric box. Then the inspector would come later in the day. Unfortunately, the guy who was supposed to come to finish the job didn’t show, and the stucco contractor had to get a substitute who (a) came too late, so the inspection was called off and (b) was not a lath specialist, so he missed a few things. Fortunately, my stucco contractor and I came up with a plan “B” and he had somebody come out the following Monday to make sure everything was right, and then we got the lath inspection completed on Tuesday.

Utility workers pulling new electrical cables through the conduit that I installed almost 2 years ago. These guys are working on live lines, but are extremely careful to only work with one at a time. and they know how to do it safely. I'm way to chicken to ever do this.

Utility workers pulling new electrical cables through the conduit that I installed almost 2 years ago. These guys are working on live lines, but are extremely careful to only work with one at a time. and they know how to do it safely. I’m way to chicken to ever do this.

New meter installed. Actually, it's really just the existing meter taken out of the old panel and installed in the new main panel. Still, it's my nwe electrical work which has been given life!

New meter installed. Actually, it’s really just the existing meter taken out of the old panel and installed in the new main panel. Still, it’s my new electrical work which has been given life!

My old electric meter is now out, but we only have a few hours before the inspector comes to inspect the lath. I'm not feeling good about this...

My old electric meter is now out, but we only have a few hours before the inspector comes to inspect the lath. I’m not feeling good about this…

Temporary electrical hookup. I needed to install a working electrical system so I just ran new wires to the existing wiring and secured it. with tie wraps. It's neat, and it's exposed so I can monitor it, But definitely will need a total replacement. The good news was that everything worked when I turned it on the first time!

Temporary electrical hookup. I needed to install a working electrical system so I just ran new wires to the existing wiring and secured it. with tie wraps. It’s neat, and it’s exposed so I can monitor it, But definitely will need a total replacement. The good news was that everything worked when I turned it on the first time!

This little experience highlights something that I have found important as a project manager: A good project manager knows how to anticipate problems and avoid them, but also knows how to accommodate when unforeseen problems occur. I knew that scheduling a bunch of things to happen in a certain sequence that Friday had inherent risk. The electrical switchover had to go just right and be timely, the stucco guy had to come early enough and finish, and the inspector had to come late enough to give the lather enough time. So, things didn’t work out, but it was worth the try to maintain schedule. The good news was that I was done with all of the work that I was personally responsible for, so now, I’m not in the way. Nothing makes me more productive than the last minute!

The stucco work commences first with the scaffolding. This Sam the scaffold man. His work is solid and so much better than the tower scaffold that I had to endure working on during the construction of the addition.

The stucco work commences first with the scaffolding. This Sam the scaffold man. His work is solid and so much better than the tower scaffold that I had to endure working on during the construction of the addition.

Scaffolding all ready to go to start work!

Scaffolding all ready to go to start work!

Removing some of the old stucco in front. We just had to get rid of all of that

Removing some of the old stucco in front. We just had to get rid of all of that “chunky monkey” look that was popular when these houses were built. It’s not popular anymore.

Lath installed where I will get the new stucco. The rest of the house will be color coated only, but the combined effect will be like getting a brand new stucco finish.

Lath installed where I will get the new stucco. The rest of the house will be color coated only, but the combined effect will be like getting a brand new stucco finish.

The next day, the stucco guys came in and started the “scratch” coat, which is the first part of a 3 part stucco siding. It is designed to cling to the lath and help tie in the rest of the stucco. It is called the “scratch” coat because the finish is “scratched” to provide a good bond for the rest of the stucco. The following day, they came in and did the “brown” coat. This is the coat that gets close to the final depth of the siding, and is finished fairly smooth. Not sure why it’s called a brown coat, but that’s the lingo. Now it was time to wait a few days before the color coat. I had a hard deadline coming up because I needed the stucco guys out so the roofing guys could come in.

Let the stucco begin! First application of the scratch coat has started.

Let the stucco begin! First application of the scratch coat has started.

The mixer man dumping a load to hod around. This stuff is really heavy!

The mixer man dumping a load to hod around. This stuff is really heavy!



Brown coat complete. It really looks good, and will even look better once the finish coat is applied over the whole house.

Brown coat complete. It really looks good, and will even look better once the finish coat is applied over the whole house.

The next week, a couple of guys came out to do the scaffolding on the entire house. That was an all day job and it really had to be all over. This is one of the many reasons that stuccoing an entire house is NOT a DIY project! Then, the stucco finishers came out and started putting the color coat on. When they put it on the back, they smoothed out the existing texture and then put an awesome lace texture on. These guys are really artists — well maybe not Michaelangelo, but same idea (and same medium).

Scaffolding on the West side of the house. Scaffold set-up and take-down is a significant part of the cost of the work.

Scaffolding on the West side of the house. Scaffold set-up and take-down is a significant part of the cost of the work.

Scaffolding outside my loft window. I'm glad somebody else is doing this work while dancing on scaffolding!

Scaffolding outside my loft window. I’m glad somebody else is doing this work while dancing on scaffolding!

The man at the mixer mixing the color coat. Apprentices get to do the heavy work of mixing the stuff up and hodding it around to keep the plasterers busy so that they have time to work with the material. This is why I subcontracted this work out. Definitely NOT DIY!

The man at the mixer mixing the color coat. Apprentices get to do the heavy work of mixing the stuff up and hodding it around to keep the plasterers busy so that they have time to work with the material. This is why I subcontracted this work out. Definitely NOT DIY!

Color coat being applied over existing stucco (right under the eaves).

Color coat being applied over existing stucco (right under the eaves).

The master plasterer at work. Michelangelo had nothing on this guy!

The master plasterer at work. Michelangelo had nothing on this guy!

Stucco is a very messy trade. Sort of like sausage making -- you don't want to see the process, but you like the result.

Stucco is a very messy trade. Sort of like sausage making — you don’t want to see the process, but you like the result.

In the end it all worked out. I was very pleased with the result, and my home is becoming the envy of the neighborhood. Next, onto the roof!

beautiful-texture

Close-up of the texture. This is real artisan stuff here. I have a very unique product that looks great!

color-coat-complete

Color coat complete. Looks fabulous! The roofers are coming next week, so the scaffolding still has to be removed. It’s going to be tight with the schedule!

California Sleepin’ — Finishing up the Porch Roof and Getting Ready For Roofing And Stucco

Alas, even though I had been working hard on getting the framing and roofing done, I still had to build the roof system over the porch. This was going to be some more fancy carpentry than what I did in the past because I had to put together a new roof structure and stitch it up to the existing roof structure. I did much of the work during the design phase, so my plans were pretty detailed. But, before I could proceed, I needed to build a proper structure to support the roof and the associated framing.

The first thing that I had to do was to replace the old beam and column which held up the balcony with a new structure. The old one was falling apart, and most of the construction was more of this slipshod crap from the original builder. I try to replace as much of this crappy work as possible without tearing down the whole house! This, however, was a no-brainer, and not very difficult when compared to building the main addition. I started with a bare foundation, then drilled holes and put in new anchor bolts secured with epoxy. I learned the proper way to do it when I did the seismic retrofit in the garage. Next was some simple vertical framing for the column proper. The main thing I had to consider was how to protect the top of the column from weather. I put in two sheets of building paper with some flashing on top, and made sure to have about 3-4 inches of overhang so that the stucco folks could tie it in when they did the lath.

New hold down bolts properly held in with epoxy.

New hold down bolts properly held in with epoxy.

Close up of the porch column with building paper (2 layers) and flashing installed. The stucco people will like me for this.

Close up of the porch column with building paper (2 layers) and flashing installed. The stucco people will like me for this.

I also had to tear into the wall of the house to get to the old beam and remove it. Good thing I did because the wall support for the old beam was totally inadequate. I replaced it with a proper 4×4 and fastened everything together with SDS wood screws. That baby ain’t coming apart!

New in-wall support column for the porch beam. The other one was a crappy little 2x4 that was all bent. Note the SDS screws which secure the beam the the wall structure.

New in-wall support column for the porch beam. The other one was a crappy little 2×4 that was all bent. Note the SDS screws which secure the beam the the wall structure. “SDS” stands for “Strong Drive Screw”, which is a proprietary name for these screws made by Simpson Strong Tie.

New column and beam for the porch roof. The old assembly was falling apart and the support column in the wall behind was just lousy, sloppy construction.

New column and beam for the porch roof. The old assembly was falling apart and the support column in the wall behind was just lousy, sloppy construction.

The next thing to do was to lay out the roof structure. Roof structures are made with either trusses, which I had to use over the master bedroom, or simple framing lumber put together one piece at a time. This is called “stick” framing when you’re doing it for a roof. Before I get too far into how I did this, I think it’s helpful to be familiar with some of the terminology. As with walls, each structural member has a name. The board going across the top is called the “ridge”. This is supported at each end by walls called “gables”, if they are straight up and down, or “hips” if the roof slopes at the ends, as well as the sides. The framing of the roof from the ridge board to the top of the walls is called a “rafter”, and the lumber going from the top of each wall across is called a “joist rafter”. For more complex roofs, you have “hip rafters” which are at the edges of hip roofs, “valley rafters” where a one roof line intersects another forming, well, a valley, and “jack rafters” which are the short rafters going between the hip rafter and the top of the wall, or the valley rafter and the ridge. Here is a picture to help sort things out.

Basic diagram for roof framing. There are all kinds of references and resources on the Internet.

Basic diagram for roof framing. There are all kinds of references and resources on the Internet.

My porch roof was a little different (naturally). The roof is only “half roof” that starts halfway up the second story wall and slopes down over the porch, so the ridge board becomes a “ledger” board. And, instead of intersecting the main roof with a valley, I have to put down lumber on top of the main roof. I came up with this idea by myself during the design phase, but little did know that my situation was not unique. In fact, I found that the proper terminology for this piece of lumber is called a “sleeper”, and because this happens a lot in California (God only knows why), it’s called a “California sleeper” — hence the title of this post.

This shows the structure detail of the porch roof.

This shows the structure detail of the porch roof.

Now that I actually had to start cutting lumber, I was faced with the conundrum of figuring all of those pesky things like lengths, miter angles, and bevel angles. I also knew from past experience that little errors are magnified when you start cutting angles. I did some research on the Internet and I found a REALLY GOOD roof framing website by a master carpenter named Sim Ayers who had a blog entry on EXACTLY what I was trying to accomplish. So I read with enthusiasm and discovered that calculating these lengths and angles directly from trigonometry was pretty tedious. While there are some handy-dandy roof calculators out there, I decided that I already have a “calculator” in with my 3D modeling program. Since I wanted to be as accurate as possible, I used some direct measurements, which are always good when you’re working with existing structures, and then fed them into a simple 3D model and took off the necessary lengths and angles (bevels and miters) from there.

3D model of the porch roof where it joins the main roof. I only took 3 orthogonal measurements (as shown) and constructed the rest of the model from there using the known dimensions of the lumber and the rafter spacing (16

3D model of the porch roof where it joins the main roof. I only took 3 orthogonal measurements (as shown) and constructed the rest of the model from there using the known dimensions of the lumber and the rafter spacing (16″ o.c.).

Close-up of the

Close-up of the “sleeper” rafter and how I measured the cut angles. The 3D modeling program gives me the exact angles.

I know this isn’t a really useful “how to” unless you have a 3D modeling program, which I highly recommend anyway, but really, if this is something you’d like to know more about, then visit Sim’s website (link above). Here is the link for his blog post on Off Angle California Framing.

Picture of a

Picture of a “pro” roofing job (by Sim Ayers) using a California sleeper.

My DIY version. That was some pretty fancy carpentry!

My DIY version. That was some pretty fancy carpentry!

Once I had the rafters and trim in place, I needed to get the roof on. I decided to use shiplap on the entire roof because the underside would be exposed and I wanted a nice look.

Underside of the porch roof matches the shiplap of the eaves.

Underside of the porch roof matches the shiplap of the eaves.

Front wall extends up to the last common rafter. Note the small space between the main roof, the adjacent wall, and the porch roof. This will be totally closed off when complete. Maybe I'll cut a small hole in the bedroom wall and use this as a

Front wall extends up to the last common rafter. Note the small space between the main roof, the adjacent wall, and the porch roof. This will be totally closed off when complete. Maybe I’ll cut a small hole in the bedroom wall and use this as a “secret compartment”.

I always sign my work. This area is going to be covered with plywood and stucco. I wanted people 2000 years from now to uncover my hieroglyphics during an archeological dig and argue for decades about what this find meant.

I always sign my work. This area is going to be covered with plywood and stucco. I wanted people 2000 years from now to uncover my hieroglyphics during an archeological dig and argue for decades about what this find meant.

Now, before I got the windows installed, I wanted to load the bedroom with any additional drywall and lumber that I might need because I sure didn’t want to haul it up the stairs! Fortunately, I could rent something called a “material lift” which makes it possible.

Drywall and lumber ready for loading up into the master bedroom. I wanted to get this loaded before I had the windows put in,

Drywall and lumber ready for loading up into the master bedroom. I wanted to get this loaded before I had the windows put in,

I rented a material lift to get all of the plywood and drywall up to the second floor.

I rented a material lift to get all of the plywood and drywall up to the second floor.

Unfortunately, I had some “learning” to do when it came time to actually use it as the following video shows.

Despite my failings, I was able to get the materials loaded and the windows installed.

Drywall and interior lumber loaded into the master bedroom. That was a LOT of WORK!

Drywall and interior lumber loaded into the master bedroom. That was a LOT of WORK!

All buttoned up and ready for the lath folks.,

All buttoned up and ready for the lath folks.,
