Energy Conservation and California Title 24

California is known for being, among other things, a “progressive” state. I won’t get into the nuances of exactly what that means other than to point out that California has some fairly stringent energy conservation laws and regulations. One of them is the Title 24 energy requirements, and the law focuses on the twin aspects of energy efficient design regulations, and compliance regulations. Energy efficiency is always a design objective for any home or remodeling project, not only to minimize the ongoing cost of utilities, but also because there is great concern about reducing our collective energy “footprint” due to the impact on climate and the environment. There is always a trade-off between the extra expense that has to be incurred up front to make a home energy efficient, and the expense one saves in utility bills which amortize this up front cost. Hey, if you spend so much making your home super efficient, but it takes 100 years to recover the expense, maybe that’s not such a bright idea.

In California, some of the guesswork about this has been regulated away. However, the way the state has done it is pretty cool (IMHO). Instead of prescribing how much insulation or what kind of roof you can put on your house, you design using a performance based approached. The state has a free computer program that will calculate the energy efficiency of your house, and you can make tradeoffs between energy efficient windows, reflective “cool roof” shingles, radiant barriers, insulation, etc.. to get within requirements. These requirements are specific to your geographic location and take into account the orientation of your house, the historical weather conditions, the length of daylight, elevation of the sun, and calculate your energy usage over an entire year in 15 minute increments (that’s  34,560 iterations). The reason I think this is cool is because I’m a geek at heart and this computer based modeling interests me. Fortunately, because I modeled my house, it was easy for me to get all of the measurements (surface areas). California also has a simulation for commercial buildings and, check this out, it uses a SketchUp plug-in called Open Studio, which is made by the National Renewable Energy Laboratory.

OK, enough of the geek stuff. The output of the program shows you how much energy you’ll be using, and it ALSO gives you an idea of what your heating and air conditioning requirements will be.  So, for me, I now can approach an HVAC contractor armed with some knowledge and make sure that they are sizing the units correctly.

As I mentioned above, another thing the program was useful for was to do some design tradeoffs. I had originally planned to replace all of my windows with vinyl high efficiency window. One thing that I noticed was that (a) these things are darned expensive to have installed (figure minimum $500 per window), and (b) it’s pretty difficult to get the right materials. Replacement windows are DIFFERENT from new construction windows, and while you can work your window opening to accept a new construction window, it’s difficult and expensive to do. None of the retail outlets sell replacement windows. I did some serious research and the only thing I came up with was to find some contractor who could buy the windows for you, and maybe you pay him a little bit and he puts your windows on an order he’s doing for somebody else. I swear, there must be some sort of conspiracy! So I had resigned myself to get a contractor to come in and do the stinkin’ windows. In the course of finalizing my plans, I had a professional inspector come in and give me the low down on the condition of my home because I didn’t want any big surprises (more on that later). He asked me about the windows, and when I told him I planned on replacing them, he strongly advised against it. Although I have single pane aluminum sliding windows, he said that all they needed was a good refurbishment, and that the energy savings were minuscule because of climate we live in. In addition, vinyl windows started to exhibit problems in as little as 5 years (in his experience). So, I went back to the energy simulation program, put back in my original windows, and darned if he was right. Hardly ANY change in energy efficiency. THAT saved me about $8000!

I won’t get into California Title 24 lighting requirements too much. I will only mention two things. (1) Incandescent lighting is an EXTREME wast of energy! An incandescent light should be re-named a light emitting electric heater, because that’s what it is. Go with high efficacy lights such as LEDs or Compact Flourescent (CFL). (2) California Title 24 requires that you have special fixtures that accept a specific light base (GU 24) for all permanent lighting (like all of those recessed ceiling lights I want to put in). This is because the regulators wanted to make sure that the owners wouldn’t just go out and buy typical screw-in lights when the “fancy ones” burned out. Unfortunately, the market for these special light bases and fixtures is limited (to new construction in California), so the industry has responded by making a whole BUNCH of high efficacy lights with the screw base (Edison). Now, I don’t have much of a choice in lights because of this response to the code by industry. It turns out that the new requirements for 2018 will allow screw in high-efficacy lights. BUT, I’m being permitted under 2010 requirements, so I’m stuck. My plan is to get a bunch of really cheap GU-24 CFLs to put into my lighting and have the inspector sign off, then when he’s gone, buy a bunch of GU-24 to Edison adapters and get the screw-in lights I really want.

So, to conclude, if you have a “geek streak” and are interested in learning about energy efficiency,you might want to consider one of the computer models that give you an accurate picture of what your energy improvements, and savings, might be. It makes it easy to compare energy upgrade costs versus utility savings, and it can give you some really good information when it comes time to discuss options with contractors. Since it’s a requirement in California, you’re either going to have to DIY, or pay somebody to do it. For me it was worth the effort to DIY, and I now have a good plan for making meaningful energy efficient improvements for my project.

Leave a comment Posted on ARCHITECTURE, Design, Narrative, Planning

Architectural Design — The Addition, and Fixing The Roof Leak

One of the major reasons I started this project was the fact that I had an annoying leak from the roof that was making a big stain on the ceiling in my living room. The leak really comes from a second floor balcony which is adjacent to the master bedroom. The design is poor because water accumulates from the roof and concentrates in the balcony, and there is no easy way for the water to run off. So it stays in the balcony and ultimately leaks onto the porch, the garage, and the living room. I tried three different ways to fix the floor of the balcony (tile, flat roofing, and rubber membrane), and none of them worked. In looking around the rest of the neighborhood with houses of similar design, I noted that they also had the same problem.



BALCONY DESIGN_2

ORIGINAL BALCONY DESIGN

So another approach was necessary. Fortunately, a few of the houses had a modification that put a valley roof directly above the porch. I asked the owners if that helped and they all said that it completely solved the leakage problem.

ROOF OVER FRONT PORCH-1

ROOF OVER FRONT PORCH 2

That being said, the balcony itself was just wasted space. It was hot in the afternoon because it faces South West, and it has an expansive view of the garages of my neighbors across the street. Not exactly a place where I’d hang out and relax. So, to make more out of the space, I decided to see what it took to completely eliminate the balcony and expand the master bedroom.  There were some homes in the neighborhood that had done that, but I didn’t like the outcome because they didn’t fix the leakage problem. Plus, I wanted to reconfigure the windows to provide better air flow and noise mitigation, and I wanted to rearrange the master bathroom and closet to provide a more open floor plan.

EXPANDED MASTER BEDROOM

EXPANDED MASTER BEDROOM



So, I looked at my original floor plan, and went back to the type of functionality we wanted. We decided to utilize the new space in an open manner, swap the location of the toilet and lavatory, make a small “room” for the toilet area with folding doors, and enable a natural flow from the bathroom to the dressing area. The dressing area would be open, yet private, and have some nice light coming in from the new windows. We also have some room for a sitting area and our desks. Simple and straightforward, but it looks pretty nice. At least from the plans!  I think it meets our requirements for making the most out of wasted space and provides a permanent fix for the roof leak.

Here are the plans:



ARCHITECTURAL

ELEVATIONS







ARCHITECTURAL DESIGN

EXISTING 2ND FLOOR

ARCHITECTURAL DESIGN

NEW 2ND FLOOR

Leave a comment Posted on Design, Planning

Electrical Design

As with any other design, electrical design begins with your requirements. Lighting requirements, which I discussed in a previous post, will dictate the locations and types of switches and circuits. But one also must consider the other electrical needs of the house. This includes electrical outlets,  appliances, HVAC (Heating, Ventilation, and Air Conditioning), and specialty circuits such as an electric car charger or a stair elevator. When considering the electrical requirements of my remodel, I also wanted some room for future expansion to take care of needs that aren’t yet specified. In an older home, this typically means that you’ll have to upgrade the service going into the house. More on that in a bit. Here is the list of requirements that I came up with for my remodel.

  1. Significantly expanded permanent lighting to be controlled with switches from convenient places.
  2. Additional outlets for the den (entertainment center) and kitchen.
  3. Dual electric car chargers.
  4. Air conditioning system.
  5. Additional outlets in garage to support a smart home wiring closet

Now at this point of the design, we start to get on thin ice when it comes to a DIY job. You will have to start making design decisions and tradeoffs which are going to be influenced by code requirements, and unless you have some background and experience with electrical design and code requirements, it might be a good idea to enlist the help of a professional. In my case, I have an engineering degree, so I have a good handle on basic electrical design and circuits. In addition, I have several years of experience from the Navy as an electrical officer and engineer officer, so I have a lot of practical experience with electrical systems including power generation, distribution, control, and most importantly: SAFETY!! This is why I caution anybody who does NOT have experience with electrical systems to get professional help sooner rather than later. Electricity can kill you and can burn your house down, so you’d better be sure you know what you’re doing. With this in mind, I started with a focused study of the California Electrical Code, which is basically a reprint of the National Electrical Code (NEC). There are also a lot of “how-to’s” on the Internet, and there are a lot of forums where you can pick up some good tips that help demystify the arcane language of the NEC. One site, which is particularly geared to the DIY enthusiast, is Wire Your Own House. The guy who writes this is a professional electrician, and his website is chock full of good information. Turns out that there are a lot of professional tradespersons who freely share their techniques and knowledge. If you really want an education on how to do things like a professional, YouTube is a great resource. Consider it your apprenticeship program! Now, armed with knowledge, I was ready for the next step. As in every other remodeling project, the first place to start is figuring out what you’ve got. So I went to my service panel and methodically turned off one circuit after another and with multimeter in hand, recorded every switch, receptacle, and appliance, and matched all of those to my the individual breakers in the service panel. Needless to say, I found some problems.

  1. The service panel was woefully inadequate for what I had planned. It was a 100A service and it was maxed out. I knew I needed more than that. Wasn’t sure how much yet because I hadn’t completed the design, but I knew there was no room for expansion.
  2. Some circuits were not per code. I had a massive amount of lights and receptacles on one circuit, and it looked like it was messed with by the previous owner of the house. My adding some “extensions” to the circuit didn’t help much.
  3. I didn’t know what I was doing. What did I say before? If you’re not in the business then be VERY CAREFUL. Turns out that I made several code mistakes, like powering kitchen lights with dedicated small appliance circuits (a no-no) and extending lighting circuits with junction boxes buried under drywall (safety hazard — and not per code). However now that I know the code better, I’m going to right these wrongs. Plus, my design has to get approved by the building department, so they will provide an independent check. PLUS — I’m going to hire a consultant to check any work I end up doing myself. I may be smart, but I don’t know everything, and an independent look is well worth it.

Sidebar: a couple of months after I accomplished the “as installed” conditions, I had an electrical fire. No kidding! The dryer breaker fried. So I pulled apart the dryer to make sure that the heating element was OK, and it was fine. I then went back into the distribution panel, and lo and behold, the 240V wiring from the dryer in the panel had shorted out. You know, the one with the red insulation on it? Upon further inspection, I found out that there were knife cuts in the insulation, probably from stripping the outer plastic sheathing on the Romex during the original assembly. So, I put some heat shrink on the offending conductors, and clipped the blasted out wire so that I had a good solid wire to work with, and put in a new dryer breaker, the original one being a slag heap. Moral of the story: Even the professionals get it wrong on occasion! If I needed another reason to get a new distribution panel, this was a good one.

Now that I had the “as installed” configuration, I could start to work on the remodel. I went back to my design requirements and placed all of the lights, receptacles, and switches where I wanted them on the plan, and then mapped those to the existing circuits, making new circuits where necessary. Also, to be code compliant, I had to consider not only the numbers and types of circuits, but also which ones were Ground Fault Circuit Interruption (GFCI), but also Arc Fault Circuit Interruption (AFCI). AFCI is used to help prevent fires by detecting the spark (arc fault) that occurs between two conductors that short out (such as with a faulty lamp cord). Those are required in living areas such as living rooms, dens, and bedrooms. Basically, if you want to be up to code, you’re either going to have a GFCI or an AFCI breaker in your distribution panel. Not so many “standard” breakers anymore! Lastly, now that the circuit design was done, I had to calculate the loads to figure out what service I needed. The code can be pretty arcane when it comes to figuring out what you really need. Fortunately, there are some great resources on the Internet, the best one was from a website (“Electrical Knowhow“) where you can find a handy-dandy spreadsheet(ResidentialLoadCalculations) where you put in your numbers and it figures out what you need based on the code. BUT…you REALLY need to understand what goes into that spreadsheet and why it produces the numbers that it does! I referred back to the code at every step to make sure that I was putting in the correct numbers and that the results were code compliant. To sum up my diatribe on electrical design, allow me to leave you with these thoughts:

  1. Approach the design with the same top-down method that all designers use. Start with your requirements and work down, making sure that the design meets those requirements as you get increasingly detailed.
  2. Use the DIY approach to detail the design within the limits of your knowledge and experience. It’s OK to stretch a bit as long as you’re willing to invest the time and effort to self-educate. Even if you never get to the point where you finish the design, or do any of the work, the time you spend in learning the details will pay off when you hire a professional.
  3. Have humility. Don’t pretend to know-it-all and, if you’re doing this as DIY all the way, at least have the common sense to hire a consultant to check your work. The stakes are too high.
Electrical Plan_1

ELECTRICAL DESIGN FIRST FLOOR

Electrical Plan_2

ELECTRICAL DESIGN SECOND FLOOR

Here is my final electrical design.

Leave a comment Posted on Design, Narrative

Lighting Design

Although lighting and electrical design can be, or should be,  intimidating (because if you screw up you can electrocute yourself or burn your house down), there are some important design and planning aspects which a DIY’er can accomplish. These revolve around things like placement and functionality, as opposed to detailed design such as number of circuits, wiring requirements, distribution panels, and component specifications. The detailed design is best left to professionals. Even if you’re SURE you know what you’re doing, you still should get some professional advice. More on that later. First: Lighting Design!

Lighting design is important for an age in place home because as you get older, your eyesight diminishes. Besides the inconvenience of  fumbling around in the dark for the light switch, older people are endangered by unseen trip hazards. Remember, if you fall when you’re older, you may lose your mobility, and that is a death sentence. Lighting can also be a very aesthetic addition to the home.

There are three types of lighting: (1) Ambient (or General) which is used to provide light to a relatively large area, (think garage overhead lighting); (2) Task lighting, which is directed over specific areas where people do work, such as over the stove or kitchen counter: (3) Accent lighting which is used to draw attention to specific areas such as wall wash lighting for a picture display or outdoor foot lights on the sidewalk. Lighting design can get pretty involved, but a good place to start is the American Lighting Association website that has a lot of good resources to investigate. Another good resource is the California Title 24 Residential_Lighting_Design_Guide. This has some nice plan views to help visually show some of the options. A great resource, if you have to deal with California Title 24 lighting requirements, is the UC Davis California Lighting Technology Center (CLTC). Hey, even if you don’t give a rip about Title 24, this is cutting edge stuff.

So, I went through the house and imagined where I would want light for going from place to place (general), seeing what I was doing when I was cooking and washing my face (task), and highlighting our family picture wall (accent). I then drew up some plans and did some rendering to see what it might look like (here). A short word on rendering. It takes a bit more effort to understand computer rendering. But if you have a good 3D  model, you’re over half-way there. It’s actually pretty cool to see your virtual creation look like a photograph, and it’s possible for not too much $$ if you’re willing to take the effort. Kerkytha render is a free program, but you have to jump back and forth from SketchUp, which for me, is a PITA. A better program is Twilight Render, which at $99 is a real bargain. It is integral to SketchUp, and you can produce fantastic photorealistic renders. In any case, I did a few renders and walk-throughs, and came up with a lighting design.

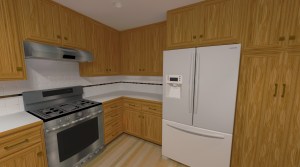

Kitchen 4

Kitchen Lighting

Another aspect of lighting design is how you’re going to hook up the lights and control them. You want to be able to control certain lights from specific, convenient locations. Many times, you’ll find that it will make sense to control a group of lights from different locations, such as hall lights with a switch and the beginning and end of the hall so you can turn them on and off as you move through the space. That’s where the electrical hook-up comes into play, and we now are getting down into the nitty-gritty of the electrical design.

Leave a comment Posted on Design, Narrative

Kitchen Design

Now that I had the house drawn up. It was time to start thinking about the re-design. A good place to start was the kitchen because it’s my favorite room in the house. I happen to be an avid amateur chef, and before I started this remodeling project, I was the food King. Meaning that I did all of the menu planning, all of the food shopping, and all of the cooking. And I’ll probably want to pick it back up afterwards because I’m going to have a great kitchen to work in! These culinary experiences and interests give me a particular viewpoint on how a kitchen should be designed. I had some concepts and constraints in mind when I approached the kitchen design. In addition to having a good physical and experience-based idea of what I wanted as a cook, I also wanted to have things easy to clean, easy to access, durable, attractive, and inexpensive. There were many features of my current kitchen which I really liked, and in the end, I kept the same basic design. Yes, I tweaked some things, and yes, I came to the conclusion that I would have to re-do the cabinets and the island, which gave me the opportunity to put my woodworking skills and tools to good use, and incorporate some additional features. Let’s face it. Every dedicated DIY fanatic ALWAYS is in search of the next “project”, so here was yet another opportunity. And in continuing my research, I found that the original design was actually a better design than I thought. One of the things that I noticed about most of the model homes we visited during our “Love It Or List It” period was the fact that most kitchen designs suck. I mean really. Most of them look great if you just want to hang out and eat, but cook? Refrigerators across the room from the ovens. Islands too far from the other countertops. Backsplashes made of expensive material that looks nice but will be a bitch to keep clean. Storage that’s clumsily arranged and hard to get to. No concept of workflow (storage to preparation to cooking to cleaning). And my pet peeve:  a microwave over the stove.  So I started with that, and then went down the list of things that I didn’t like, but keep the stuff I did.

  1. Get rid of the microwave over the stove. These things have almost zero fan power and don’t extend far enough over the stove top to trap the oils and particulate that are a part of your cooking.  So all of that junk gets embedded in the wood of your cabinets and the ceiling above. Impossible to clean. Plus, the heat from the stovetop kills the plastic and fries the electronics. And the house gets all stunk up when you’re creating yet another culinary masterpiece that you will decide is too hard to ever do again. (Why do I keep doing that?) Replace it with a good vent hood that is designed for the purpose.
  2. Resize the island to make it closer to the sink so I could easily step back and forth, and farther from the refrigerator so people could go in and out of the kitchen with the refrigerator door open. Relocate the microwave to the island. Having the microwave in the island is a universal design concept that allows easy access to somebody who can’t reach high, but is convenient for everyone.
  3. Make pullouts for all of the shelves in the base cabinets, island and pantry. Another universal design feature. As you age, it’s more difficult to get on your hands and knees and look in the way-back for this pot or that bag of flour. Come to think of it, it’s a Pain-In-The-Ass (PITA) at any age. (If I didn’t spell it out, you would have thought I was talking about some kind of bread.)
  4. Redesign the island countertop for 2 levels. One at 36” for standing work, and one at 30” for seated work. Another universal design feature.
  5. Make the inner carcass of the cabinets around the dishwasher and sink out of pressure treated plywood. The current particleboard is coming apart.
  6. Integrate beverage storage/liquor cabinet into the island design.
  7. Lower the “spice rack”. My current island has an area between the work surfaces and the “bar” where I keep all of my baking and cooking essentials (spices, flour, sugar, oils, seasonings, baking power etc.) When you’re in the midst of cooking, this arrangement is extremely helpful in streamlining your workflow because you’re not constantly going in and out of the pantry to get the next ingredient. The only downers are (a) the tops of the containers tend to accumulate detritus — hopefully solved with the vent hood, and (b) it was placed too high to conveniently see the football games being played in the den. The new design corrects this problem.
  8. Provide a place for all of my cookbooks so I would have to ferret around for them (too much, anyway).
  9. Have a pull out cart for the mixer (a king size kitchen aid) that also serves as a supplemental work surface. More universal design.
  10. Provide increased task lighting and general lighting (universal design).
  11. Make the backsplash out of white porcelain tile with a decorative glass inset. Looks nice, easy to keep clean, and inexpensive.
  12. Have a white quartz countertop on the upper top of the island. The purpose is to be have a place to roll out pastries and cookies without having to lug out a slab of marble (which isn’t big enough anyway).
  13. All other countertops will be white Formica with a decorative oak rub rail. I did this on the first remodel of this kitchen about 12 years ago, and it still looks pretty good. Yes, it needs a refresh, but these tops aren’t that hard to make and they aren’t very expensive either so occasional replacement is no big deal. I guess I’m not a big fan of these stone/granite/marble/glass composite/concrete countertops. I mostly don’t like the look because it’s distracting when you’re trying to cook because it’s not a clean background, they’re hard surfaces so stuff breaks on them when you drop something, and they’re so dang expensive. They seem to be pretty popular, but I wonder if any of the designers/builders/owners of these are actually serious cooks. One question: Have you ever seen granite countertops in a restaurant kitchen? I think I prove my point. AND, I have the best restaurant in town. If you’re lucky, I’ll have you over for one of my dinner parties!
  14. Laminate wood flooring. I know what you’re saying – this stuff has a funny sound and is not as warm and inviting as real wood (or engineered wood). Here’s the deal: It’s inexpensive, has good traction (universal design), durable, and EASY TO KEEP CLEAN. Did I mention that it was easy to keep clean? Hey a bucket of water, a greenie, and a squeegee and you’re good to go. No fancy waxes, dirt in the grout lines, peeling varnish or gouges (like linoleum). I installed it in my last kitchen remodel 12 years ago and the only defect is when my King size kitchen aid mixer fell off the counter while kneading an extra large bread dough recipe and made a divot. It has filled up with dirt over the years so I’m GTG.

Here is a rendering of what the kitchen will look like.

KITCHEN REMODEL

KITCHEN REMODEL













Here is a SketchUp model of the island. If you know about Dynamic Components, check out the microwave, the drawers and doors, and the cart pull-out.

You’ll have to download a free copy of SketchUp to see it. Why resist?

This program is extremely powerful. And fun I might add. It has probably 90% of what you get in the pro version, and if your aim is to model, or do some small scale projects, this might be the ticket. BUT… if you want to DIY like a pro, well, you need to consider the pro version. More on that later.

Leave a comment Posted on Design

Know What You’ve Got — Modeling The Existing House

The first step in designing a remodel is getting an accurate drawing, or model in this case, of what you have. This will allow you to do some design tradeoffs and, if you have a nice modeling program, give you a glimpse of what it will look like. The other benefit from doing this up-front work is that you end up learning a lot about how the structure is built and this helps give you a good idea about how to go about doing the actual work. Since I am using the SketchUp Pro modeling tool, some of what I’m going to write about will be particular to that tool. However I’ll try my best to put things in more general terms so that the narrative will be useful to as many readers as possible.

There are a number of different ways that can help you translate your structure and land into a modeling program, but the approach you decide on depends on what your goals are. For instance, it is possible to take digital pictures of your house and read them into the modeling program, do some rudimentary modeling shapes, and you now have a house. However, you don’t necessarily have the insides. Plus, if you’re going after a nicely dimensioned layout, then you’ll have to take some time to be accurate. All of the books that I’ve listed in my reference pages under design and modeling have various methods, and I encourage you to give them a look. For my purposes, I figured that just doing actual measurements would work, and it did. I had to do a lot of them, and it took several weeks of my spare time to put the model together. It looked pretty nice when it was done, but, as I kept reading about how to use the program, I found a couple of authors who did things in a much more streamlined way. So read the books first if you want to save some time. The other thing I discovered is that the building department will sometimes have the original plans for your home. Hey, somebody had to get a building permit at one point! So it is WELL worth your time, and the administrative fees, to obtain a set of your plans. Had I known this, or even had thought about it, I would have saved a lot of time.  In addition, you will likely have to show a detailed foundation plan if you’re changing any structure, and the easiest way to do it is to copy the original plans (sure beats excavating and measuring). That being said, nothing substitutes for poking around your house and figuring out what’s what. 2D drawings really don’t give you the sense of how the thing is built that a thorough walk-around and poke-about does. You’ll also discover a few other things that need “fixin’!

Here are a few things I learned about computer modeling when I did this project:

  1. There is a “goldilocks” level of detail. Too little, and you don’t get a sense of what the project is about. Too much, and the model becomes bloated and difficult to work with. Start simple and add detail as you go. If you need extra detail, like showing framing and such, then consider having a separate model for just those details.
  2. Be accurate. Learn how the modeling program “snaps” to various points and edges. I learned that the hard way and I can’t tell you the amount of time I wasted correcting sloppy modeling.
  3. Learn how to organize your model. Michael Brightman’s book (see “Design and Modeling” under References) has an excellent method, and had I used that the first time, I would have saved at least a week of my time.
  4. Customize your modeling program for workflow, meaning setting up toolbars and keyboard shortcuts. Again, Michael Brightman has some excellent ideas that will help you model faster.
  5. Be patient. Regardless of how intuitive a given program is to learn, it will take you some time to develop the necessary skills. You will make some mistakes, and in some cases, it will be easier to start over. Don’t be discouraged. Take the time to study and go on line to go through the numerous tutorials and You Tube video “how to’s”.
  6. If it’s time for you to get a technical refresh on your computer, consider getting a system optimized for graphics. The SketchUp online community organized a special deal with a custom computer maker (JNCS) that provided an optimum system. Yes, it cost some money ($4K when you include a really nice graphics monitor, wireless keyboard, and mouse for computer graphics), but it sure speeded up the modeling and I didn’t have to put up with the crashes caused by an inadequate system choking on the model.
  7. Have fun! The time spent 3D modeling can be reward in itself. It is especially cool if you can see a finished product and move it around, look inside, and see how it mimics reality.

Here is a render of my finished “as built” model:Rev 1.0 Render #1



ARCHITECTURAL DESIGN
Leave a comment Posted on Design

Detailed Design — Learning How To Draw

Well, it was time to roll up my sleeves and get to work. The first thing I needed to do was to make up a drawing of my existing house. On several of my previous projects, I used a set of rudimentary drafting tools and some skills I learned in my 8th grade shop class  to draw up some fairly nice plans. In my most recent project (a “catio” more on that later), I used Microsoft Visio to make up a set of electronic plans. That worked OK, but it really wasn’t a full-on CAD program, which is what I figured I needed if I was going to produce a set of building plans (the ultimate goal). So, I started shopping around for an architectural CAD program. Most of these programs are several thousand dollars (Chief Architect — $2695, AutoCad — $4195), and they seemed pretty difficult to learn how to use. I eventually went for a dumbed-down version of Chief Architect called Home Designer. That cost $495, and it promised to be easy to use and had a lot of nice automated features such as detailing of walls and quick rendering of interior and exterior views. So I ponied up and got the program. The term “easy to use” was relative, and I spent a lot of time learning how to use the program. I went about measuring the house and modeling it in this program. After several months of my spare time, I came up with a decent model, but I found out a couple of things: (1) I really couldn’t produce a set of working drawings with this program — it’s for “designers” who give their concepts to real architects who have these expensive CAD programs that produce “real” drawings, and (2) all of that great detailing automation meant that you couldn’t go in and customize things. You had to accept the default materials, dimensions, etc. Plus, the program was quirky and wouldn’t accurately model some of the idiosyncrasies of my house. So I was becoming increasingly frustrated as I saw that I was approaching what seemed to be a dead end.

One day, I was lamenting my woes to a colleague at work, and he mentioned another 3D modeling program called “Sketchup”. He said that he made several remodeling plans for his home with it, and he was very happy with the program. Best of all, it was free.  No kidding. It turns out that there is a free version, now called Sketchup Make, and there is a “pro” version which includes a separate program called Sketchup Layout, which is a full-on drafting program. The pro version sells for $590, which is about the same as I paid for the Home Designer loser program. So, I decided to at least try out the free version, and I discovered that it was not only intuitive, but that there was a HUGE online community that offered all kinds of help in learning how to use it. Plus, there was another group of professionals who were using the pro version to design real buildings and produce real plans. I was sold. So I swallowed my pride and bought the pro version and started afresh. That was a bitter pill because I had to start from scratch. The good news is that as I learned the program, I could customize the model and make it really accurate.

Although the program was intuitive and I picked it up pretty fast, there were a lot of nuances that I needed help with. I ended up reading a whole lot of books, which ultimately gave me a bit of mastery over the program. I have a complete list of my references under the references page in this blog. I think all of them are good, otherwise I wouldn’t recommend them,  but I would suggest starting with either the “sketchup for dummies” or one of  Bonnie Roske’s books. Also, follow the links on the Sketchup home page, check out the SketchuCation website,  or just Google search on Sketchup and you’ll find TONS of You Tube video “how to’s” and other resources. As I mentioned before, there is a tremendous online presence to help you out.

So after a lot of time, I ended up with a pretty good model of my home and some good drawings. I can say that I really came to enjoy the process, and now that I have the skill set, I feel confident that I could approach any aspect of architectural design and drawing. The building department was favorably impressed and was asking if I had any background in design. Well, I guess after 3 years of my spare time messing around with it, I could answer in the affirmative, even though my path was somewhat random at times.

I will post some of the results of my labors when I have the chance, and when I can figure out how to do it on this blog. That’s another skill set which I’m beginning to learn about.

ARCHITECTURAL
Leave a comment Posted on Design

The Design — A Systems Engineering Approach

When we first started thinking about remodeling our house, our thoughts were just to fix things that were old and in disrepair. However, the more I thought about it, I started to think about a more comprehensive approach. There are many books and websites that provide information about the design process, but the more I read, the more I came to understand that the design process for a home is the same as the process for any other design. That means that I could (should) use my experience as a systems engineer.

So, what is systems engineering? In a nutshell, it is the process by which you (1) define performance requirements, (2)  break down these requirements into sub sets that ultimately result in tangible design characteristics, (3) develop alternatives, (4) analyze the alternatives and choose the optimum approach, (5) perform detailed design, (6) construct from the design, and (7) test the design to validate that it meets performance requirements.

So, to be more specific, my wife and I sat down and had a discussion (actually a series of discussions) about what we wanted in a home. We came up with the following top-level requirements:

(1) Age in place. Since this would probably be the place we would live in for a long time, we wanted to make it such that we could stay here as we became older and make it safe and accessible.

(2) Have a modern home infrastructure that would allow for accommodation of new features.

(3) Maximize the energy efficiency of the home.

(4) Eliminate chronic maintenance problems and fundamental architectural design flaws.

(5) Pay off the house in 15 years. (No house payment when fully retired).

Having these requirements agreed upon, we considered two alternatives: Selling the place and moving to a new home, or remodeling our existing home. We then took a look at the relative advantages and disadvantages of each approach and compared them.

Attribute New Home Remodel
Age in place None that met requirements. Would require retrofits. Easily incorporated in the design.
Modern Infrastructure Most new homes have sufficient capacity for expansion Would have to upgrade the electrical system and add data/video/security systems.
Energy Efficiency New homes are energy efficient by code. Remodeling would trigger incorporation of energy efficiency code requirements.
Maintenance problems Minimal risk in a new home Would require redesign of the roof over the front porch to fix a chronic rainwater leak.
Pay off house Not likely. Likely if the remodeling budget were kept to less than $100K

So, after visiting a lot of new homes, and finding that the cost would be too high and that we would have to change them to meet our age in place requirement, we decided to proceed with a more detailed design for our home.

To set the stage for the detailed design, I looked at each high-level attribute and studied what kind of physical attributes would be necessary.

1. AGE IN PLACE: I learned that the best key word for this is “universal design” which is a term that implies design for accessibility without making the place look like a hospital. The Center For Universal Design at North Carolina State University is an excellent resource , as is the book Universal Design for the Home by Wendy Jordan, and Universal Design Ideas for Style Comfort and Safety by Reed Construction Data (my personal favorite). Design attributes that comply with universal design include curbless showers, ADA complaint fixtures (toilets, sinks, faucets, shower fixtures), countertops of different heights (30″ and 36″), wider doorways and passages, elimination of trip hazards (e.g., steps), and… LIGHTING. No kidding, I didn’t realize that lighting was a big deal until I thought about it. As you age, your ability to see becomes less. So you need more light to see properly. If you don’t see where you’re going, then you may trip and fall. This is a big deal because if you trip and fall, you’ll likely break something badly and lose your mobility. And when you’re older, that can be a death sentence.

2. MODERN INFRASTRUCTURE: There were a few things that I noticed about the new homes that I felt would be good to incorporate into my remodel: (a) air conditioning (!), (b) increased electrical capacity, (c) automatic fire sprinkler system, and (d) smart home infrastructure. Each of these required some additional research to come up with a design, and I will detail these in future posts.

3. ENERGY EFFICIENCY: California Title 24 requires that all remodeling projects comply with  performance requirements based on an energy analysis computer program. Being a geek at heart, I found this really interesting, and I took the time to properly model the house and understand the program so I could make some tradeoffs in how I approached the remodel. For example, I found that the energy savings for replacing my single pane windows with fancy double pane vinyl windows was not very much compared to the cost. Plus I found that the reliability of the vinyl windows sucked, so I decided to refurbish my existing windows. Again, I will have a separate post dedicated to energy efficiency.

4. ELIMINATE CHRONIC MAINTENANCE PROBLEMS: The primary one that had to be addressed was a leak over my front porch. This was kind of tough to figure out by myself, but fortunately, some of the other houses in the neighborhood had come up with a fix that looked pretty good, so I adopted that. More on that later as well.

5. PAY OFF THE HOUSE: We really couldn’t see how we could accomplish that if we moved based on the value of our existing home and the features we wanted in the new home. We set a remodeling budget of $100K and would plan on a pay-as-you-go approach to the maximum extent possible.

With that part of the systems engineering process complete, it’s on to the detailed design!

Leave a comment Posted on Narrative

In The Beginning ….

About 3 years ago, my wife and I were discussing some repairs that had to be made to our house, and I decided to look into what it would take to remodel instead of just putting a band-aid fix on things and slapping on a new roof and paint. As I was working on the planning phase of this project, I not only learned a lot from other bloggers and websites, but also started to think about giving back in the form of sharing my experiences and thoughts. Today, I submitted my plans to the building department for, what I hope, is the final approval. Upon reaching this milestone, I thought it would be a good idea to start this blog so that I could record things in a more real-time fashion, as well as start to capture my experience so that I wouldn’t forget it.

What qualifies me to write a blog about a remodeling project? Nothing in particular, I suppose, other than I want to write about my experiences to share with those who may benefit when undertaking similar projects. But perhaps more importantly, this is a do-it-yourself (DIY) deal. I’ve always been a DIY around the house with various projects, and this one is going to be a “Mother Of All Projects”. (MOAP — that’s a lousy acronym.  I’ll try to think of something else.) Certainly something that will be challenging, as well as pleasurable. Let’s face it — if you’re somebody who is inclined to the DIY approach, you probably do it because you like it. It’s a lot of fun seeing something tangible come out of your own creative efforts and skill, and it’s also fun to learn different skills and improve the ones you have. Note that I did NOT say anything about saving lots of money. More about that later. Suffice it to say that if you’re in it ONLY to save money, then some of the things that I write about may not be for you. That’s OK, because reading about it may be helpful in its own right.

I do have certain predilections and experiences which influence my decision to take on a given DIY project (or not). While I’m not trying to toot my horn here (I save that for dickheads who run red lights), I think that describing these up front will help put things in perspective for taking on such a large project by myself.

1. I absolutely LOVE building and creating. I can think of little else that I would rather do with my time.

2. I have been doing DIY projects for many years (over 30). These projects range from minor renovations in bathrooms and kitchens (floors, tiles, fixtures), to building outdoor structures, such as fences, storage sheds, concrete sidewalks, brick on sand patios, and even a gazebo.

3. I am a wood worker and have some serious woodworking tools in my shop. I’ve also built furniture and even a wooden boat!

4. I have an engineering degree (chemical), and I am a retired naval submarine officer. I have a lot of professional experience with industrial construction and repair work aboard ships (with nuclear reactors). So, I know how to read plans, follow specifications and procedures, and understand the hows and whys of machines and structures. Most importantly, the nuclear submarine “culture” fosters the attitude that you can figure ANYTHING out by yourself if you take the time and effort to look things up.

5. I have significant experience in project management in my current line of work. I know how to plan and execute major projects to include integrated master planning and integrated master scheduling. I also have a good working knowledge of contracts and contractual law, as well as budgeting and managing costs.

Given that background, I felt fairly confident that I would be able to handle a home remodeling project.

So, today, with my plans submitted, I’m gearing up to break ground and start turning my home into a remodeling paradise. Or hell. Take your pick. I know which one my wife is thinking about! I invite you to accompany me on this journey and I hope you find it interesting, if not helpful, and perhaps even humorous on occasion.
